Our Side Folding Security Doors

Endless Creative Possibilities In Side Folding Security Doors

If you have room on the side of your door for the curtain pocket, a side folding door is a great option for you (if you don’t, consider an overhead rolling door. We have a variety of patterns, styles, materials, finishes and colors available in all of our commercial side folding door series. Curved tracks are no problem – they can all follow almost any degree of track curvature. We can also create custom solutions faster than other companies because we manufacture them in-house.

Side Folding Quick Links

Elite Series

If you have enough room for a wider pocket but don’t have a lot of depth available, you’ll want the New Elite’s 30% – 40% tighter stack for your project.

The New Elite also offers fewer vertical lines, and more visibility into the secured area. It’s lighter and easier to open and close, but tougher than ever.

It’s the perfect solution for retrofit situations where pocket depth is an issue – or if you can’t increase the pocket but want to extend the door.

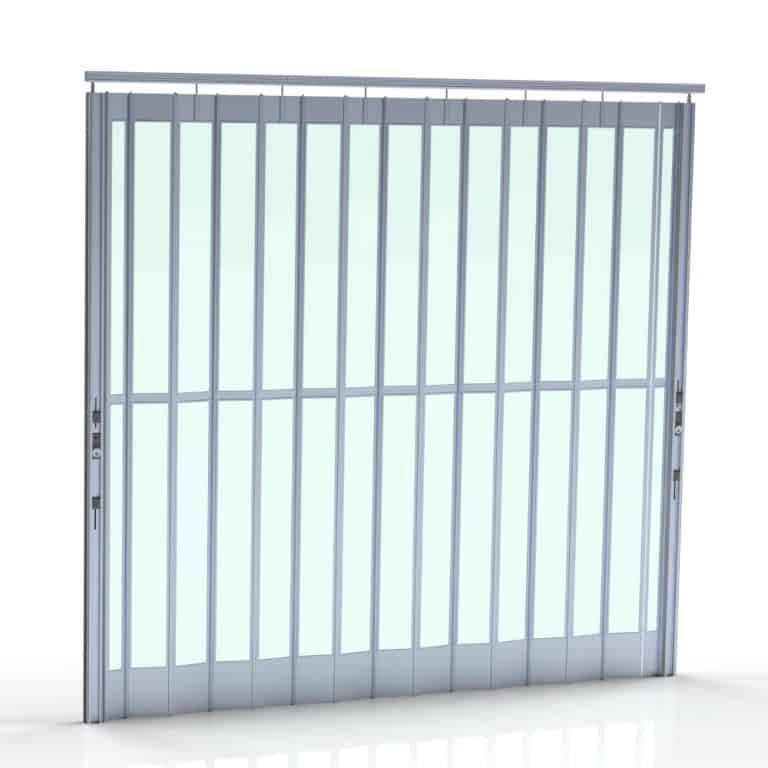

EL Futura

  • Material: 7” wide x 0.125” [3mm] Thick Tempered Glass panel in aluminum frame.
  • Weight/Load: 26.5 lbs per ft² (stacked) and 2.1 lbs per ft² (extended).
  • Stacking: 6% of curtain width plus 3″ per post (estimated calculation).

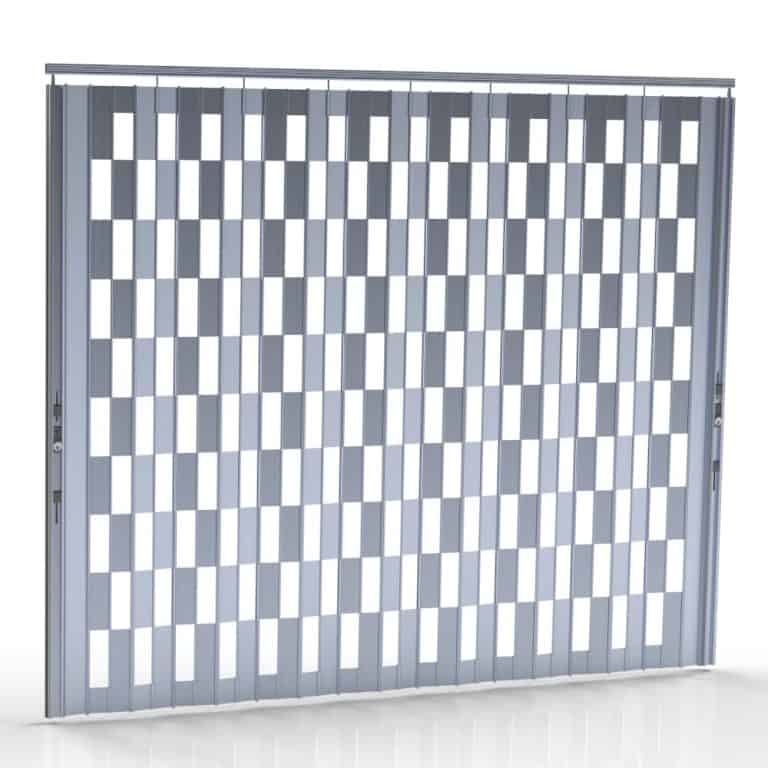

EL AG

  • Material: 7” wide wide aluminum rod and link – brick pattern.
  • Weight/Load: 15.8 lbs per ft² (stacked) and 1.45 lbs per ft² (extended).
  • Stacking: 8% of curtain width plus 3″ per post (estimated calculation).

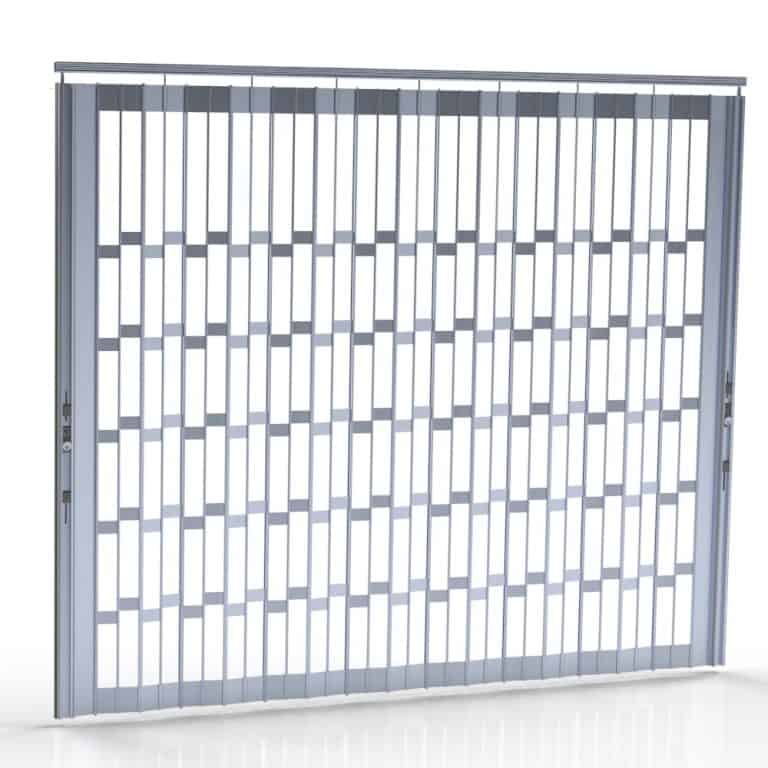

EL 12

  • Material: 7” wide aluminum rod and link – brick pattern.
  • Weight/Load: 15.8 lbs per ft² (stacked) and 1.45 lbs per ft² (extended).
  • Stacking: 8% of curtain width plus 3″ per post (estimated calculation).

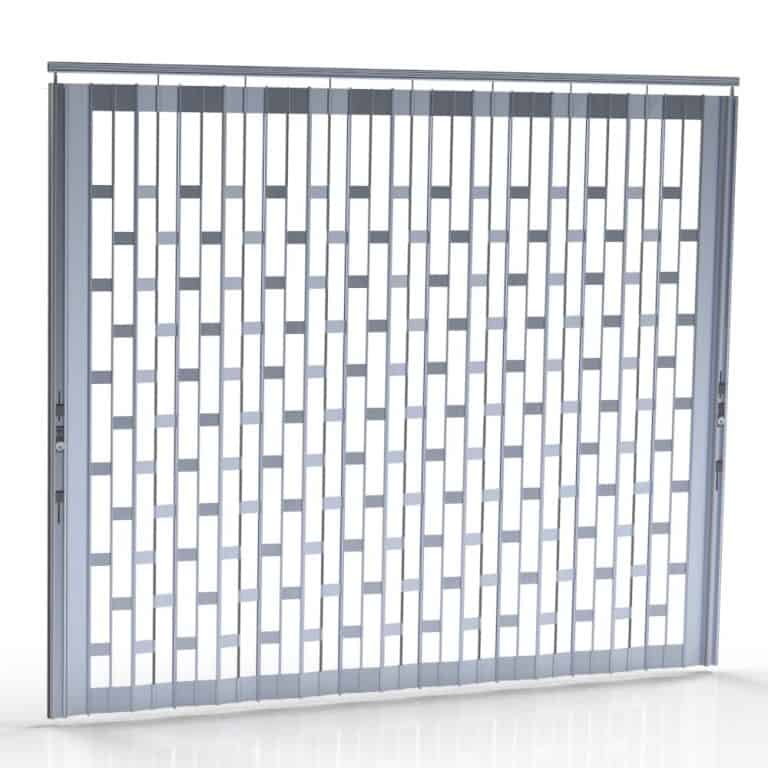

EL 525

  • Material: 7” wide aluminum rod and link – brick pattern.
  • Weight/Load: 15.8 lbs per ft² (stacked) and 1.45 lbs per ft² (extended).
  • Stacking: 8% of curtain width plus 3″ per post (estimated calculation).

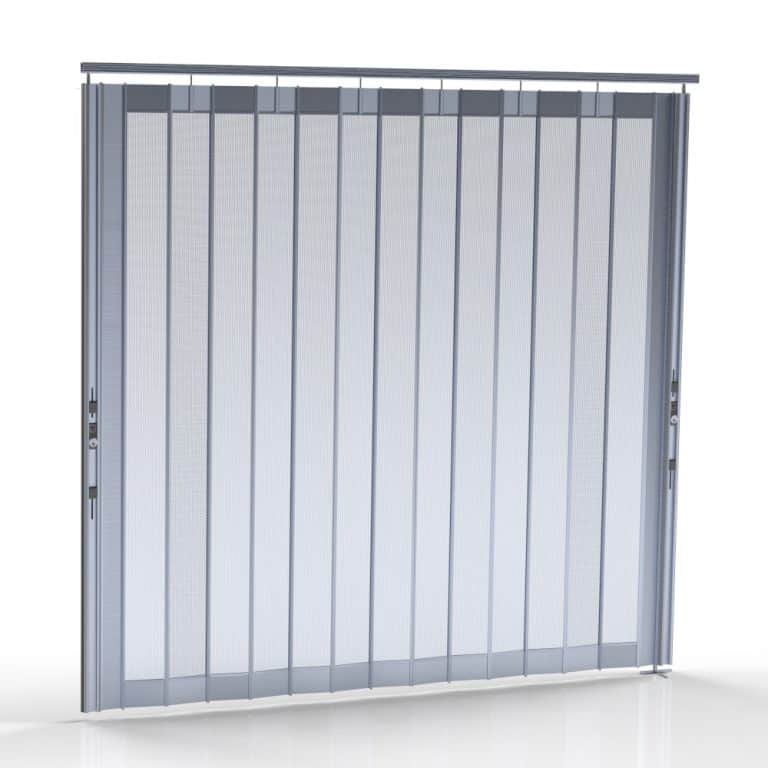

EL Paravent

  • Material: 7” wide perforated aluminum panels.
  • Weight/Load: 14.6 per ft² (stacked) and 1.15 lbs per ft² (extended).
  • Stacking: 6% of curtain width plus 3″ per post (estimated calculation).

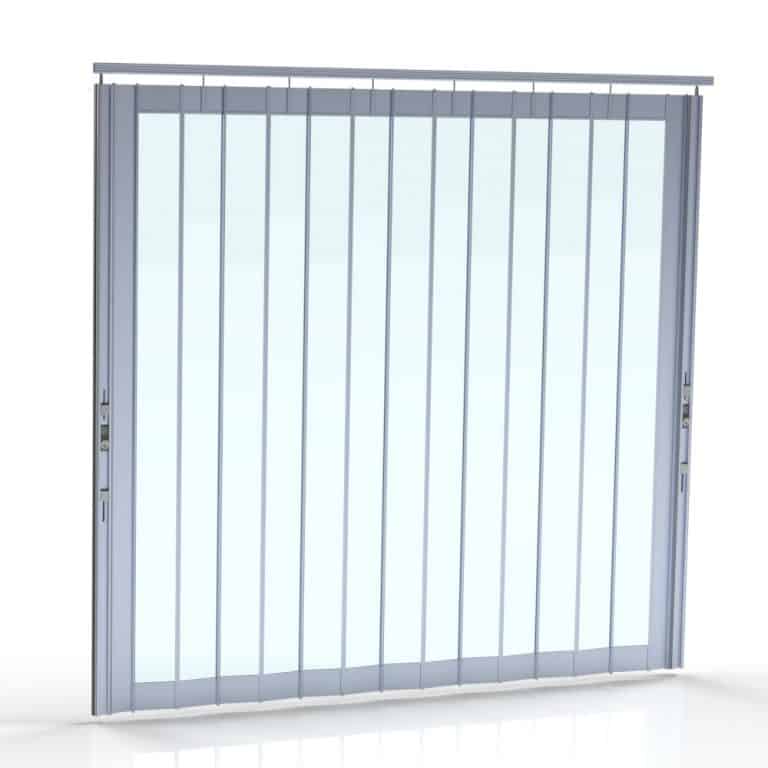

EL Prestige

  • Material: 7” wide polycarbonate panel in aluminum frame.
  • Weight/Load: 15.8 lbs per ft² (stacked) and 1.25 lbs per ft² (extended).
  • Stacking: 6% of curtain width plus 3″ per post (estimated calculation).

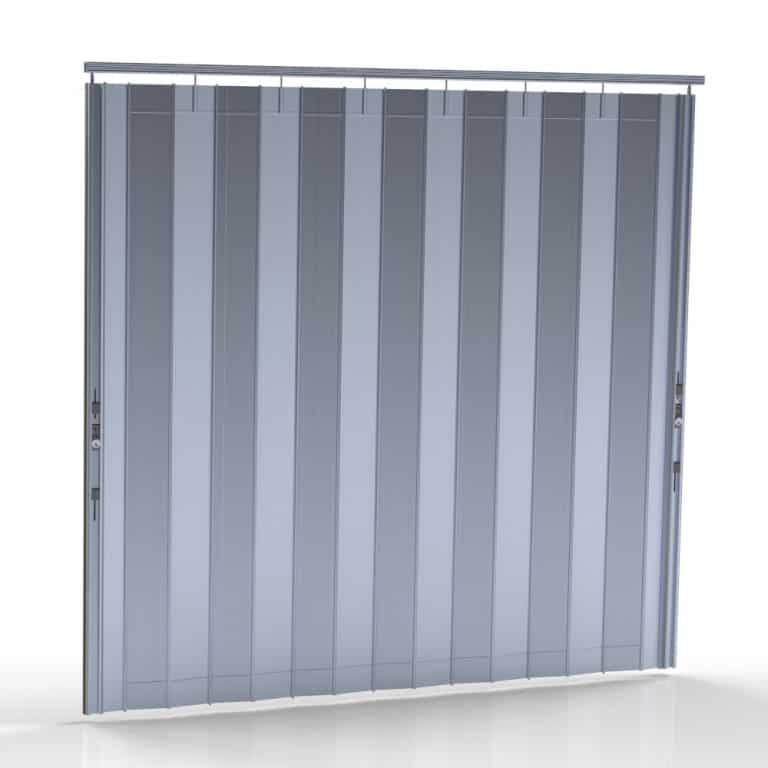

EL Opaque

  • Material: 7” wide solid aluminum panels. For full sizing details, please see brochure.
  • Weight/Load: 22.1 lbs per ft² (stacked) and 1.75 lbs per ft² (extended).
  • Stacking: 6% of curtain width plus 3″ per post (estimated calculation).

EL 126 S

  • Material: 7” wide aluminum rod and link straight pattern.
  • Weight/Load: 12.5 lbs per ft² (stacked) and 1.15 lbs per ft² (extended)
  • Stacking: 8% of curtain width plus 3″ per post (estimated calculation)

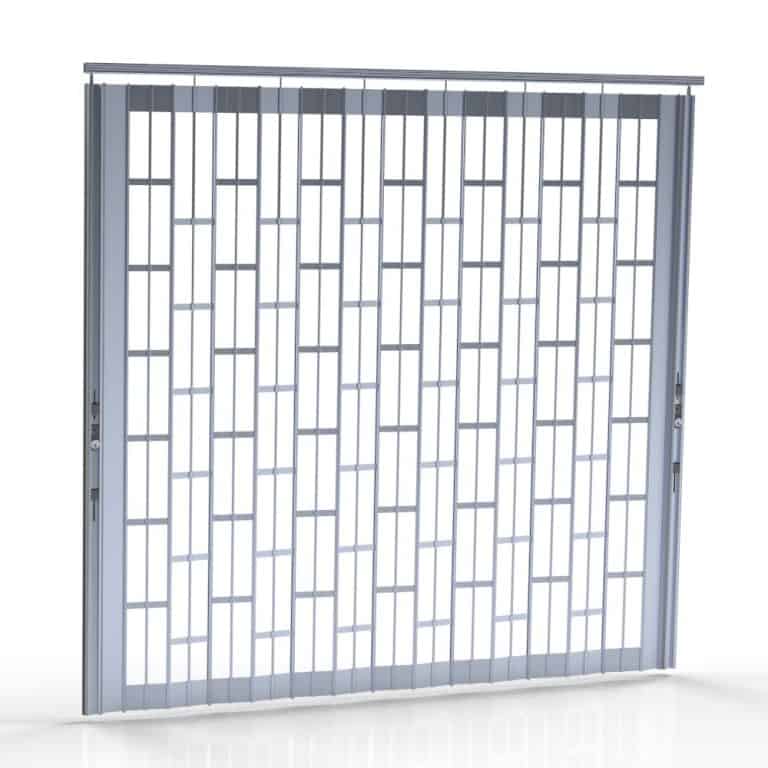

EL 126 B

  • Material: 7” wide aluminum rod and link – brick pattern.
  • Weight/Load: 12.5 lbs per ft² (stacked) and 1.15 lbs per ft² (extended)
  • Stacking: 8% of curtain width plus 3″ per post (estimated calculation)

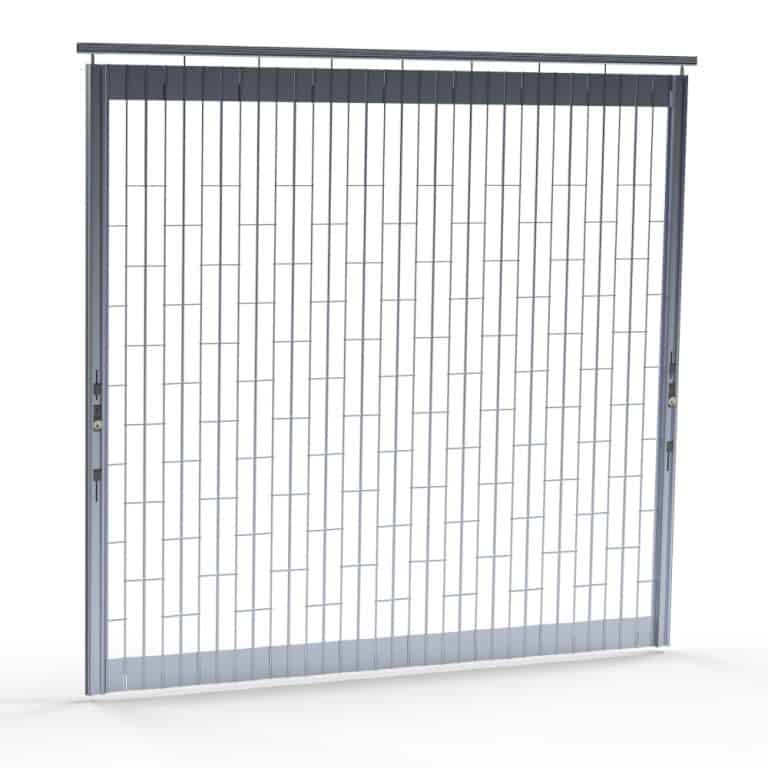

S126 B

  • Material: 7” wide aluminum rod and link – brick pattern.
  • Weight/Load: 5.5 lbs per ft² (stacked) and 1.00 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

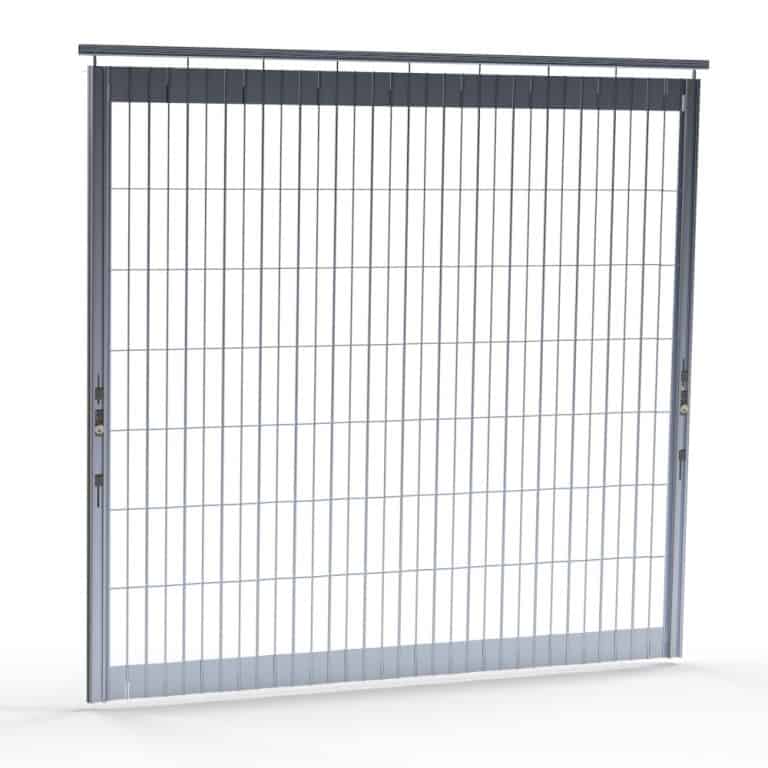

S126 S

  • Material: 7” wide aluminum rod and link straight pattern.
  • Weight/Load: 5.50 lbs per ft² (stacked) and 1.00 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

Slim Line Series

Adapting to any pocket requirement (including curves and L-angles), the Slim Line is a great solution for any secured area.

Most of the designs feature sleek vertical lines that allow maximum visibility for product display, even when the door is closed. The 5-inch stack allows you to use more space for your secured area than other doors.

Fits any application: new or retrofit, counter height to full height openings up to 14 feet tall.

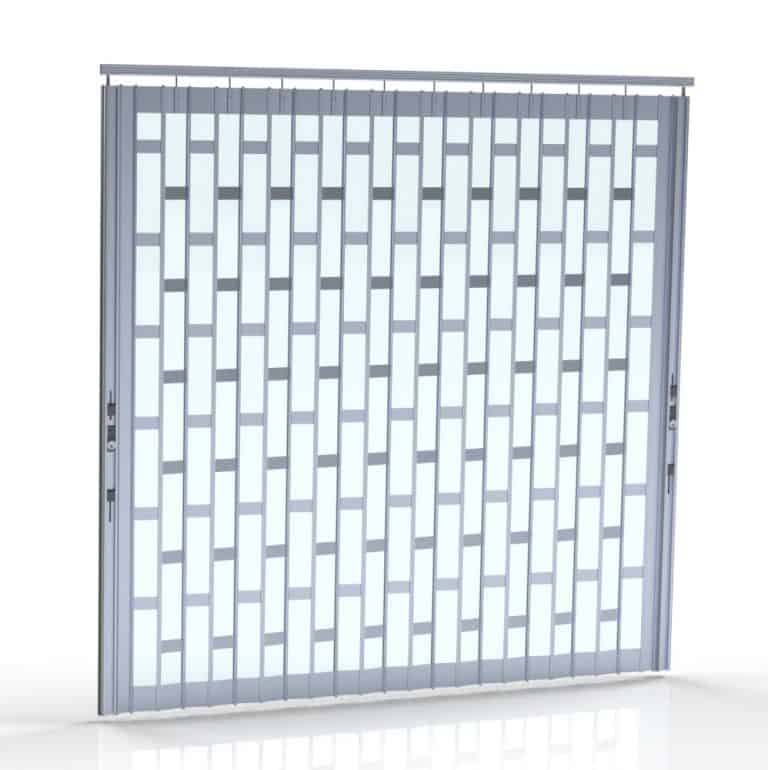

SL 525 CS

  • Material: 4” wide panel with interlocked 12” polycarbonate panels and 2” solid aluminum panels in a brick design.
  • Weight/Load: 11.5 lbs per ft² (stacked) and 1.80 lbs per ft² (extended).
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

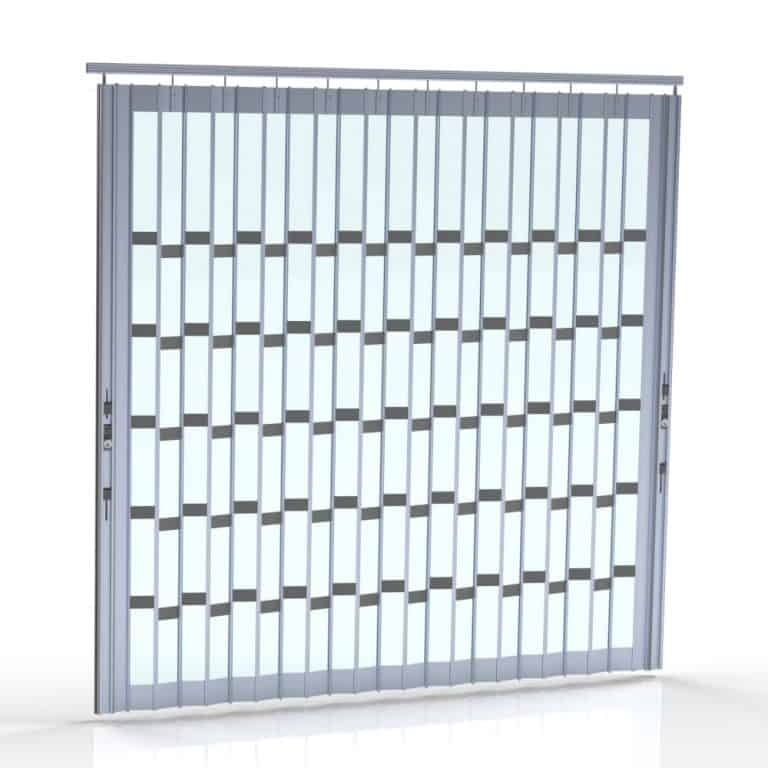

SL 12 CS

  • Material: 4” wide panel with interlocked 12” polycarbonate panels and 2” solid aluminum panels in a brick design.
  • Weight/Load: 11.5 lbs per ft² (stacked) and 1.80 lbs per ft² (extended).
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

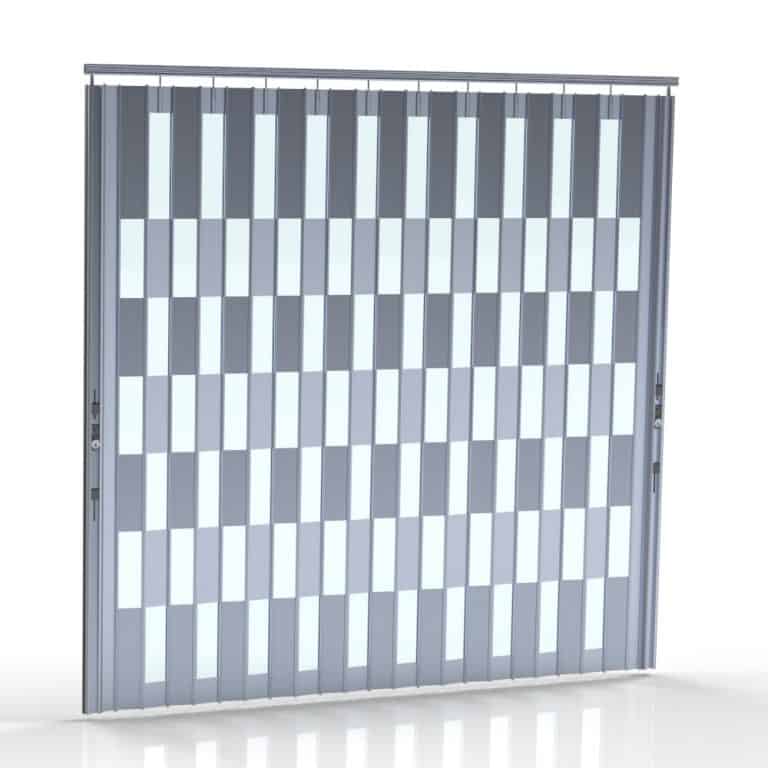

SL AG CS

  • Material: 4” wide panel with interlocked alternating polycarbonate panels and solid aluminum panels in a checkerboard design. 6”, 9” 12”, 18” patterns available.
  • Weight/Load: 13.5 lbs per ft² (stacked) and 2.00 lbs per ft² (extended).
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

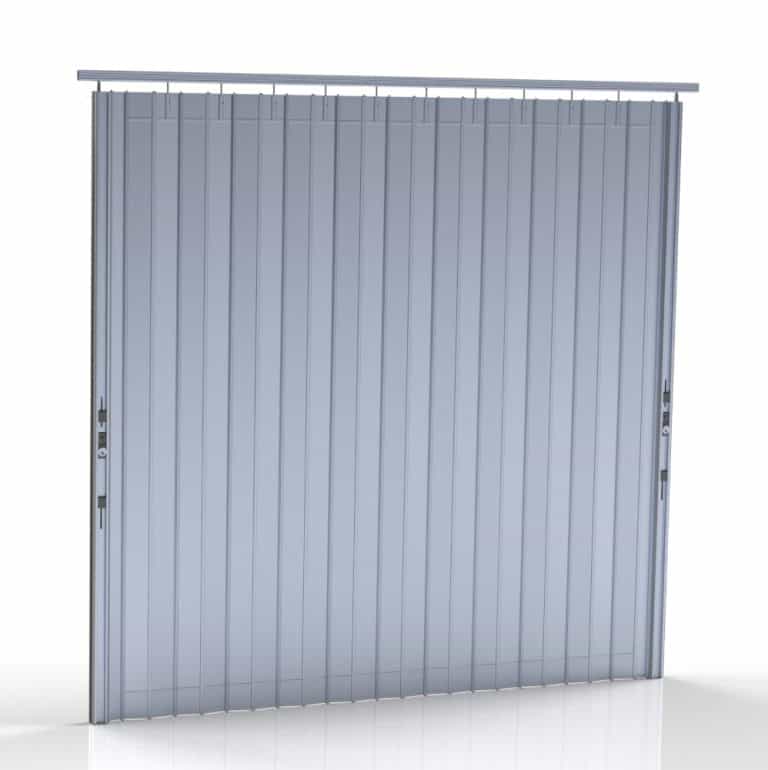

SL Opaque

  • Material: 4” wide interlocked solid aluminum panels.
  • Weight/Load: 15 lbs per ft² (stacked) and 2.00 lbs per ft² (extended).
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

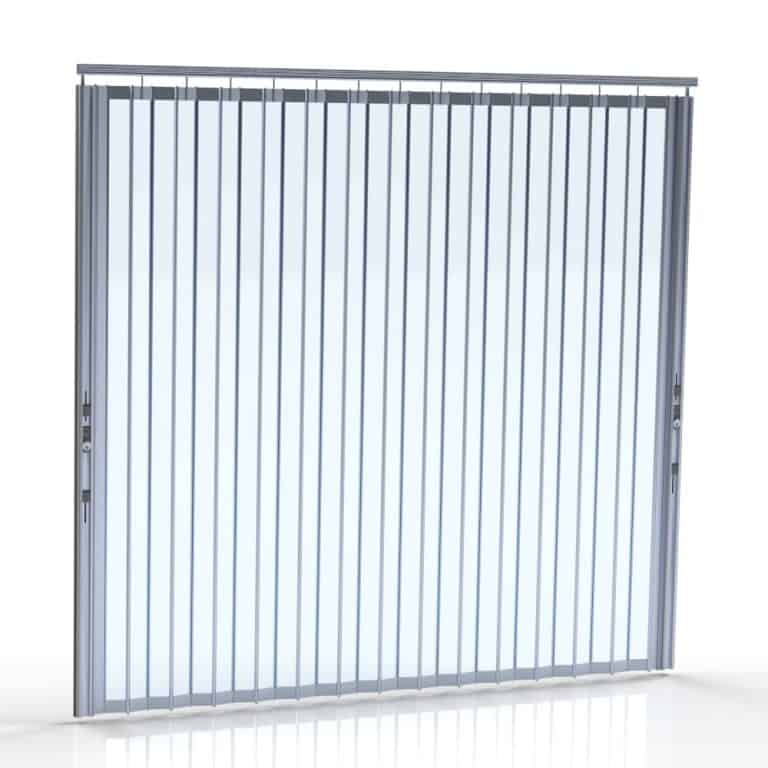

SL Prestige

  • Material: Polycarbonate panels interlocked in 4” wide aluminum frame.
  • Weight/Load: 10 lbs per ft² (stacked) and 1.60 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

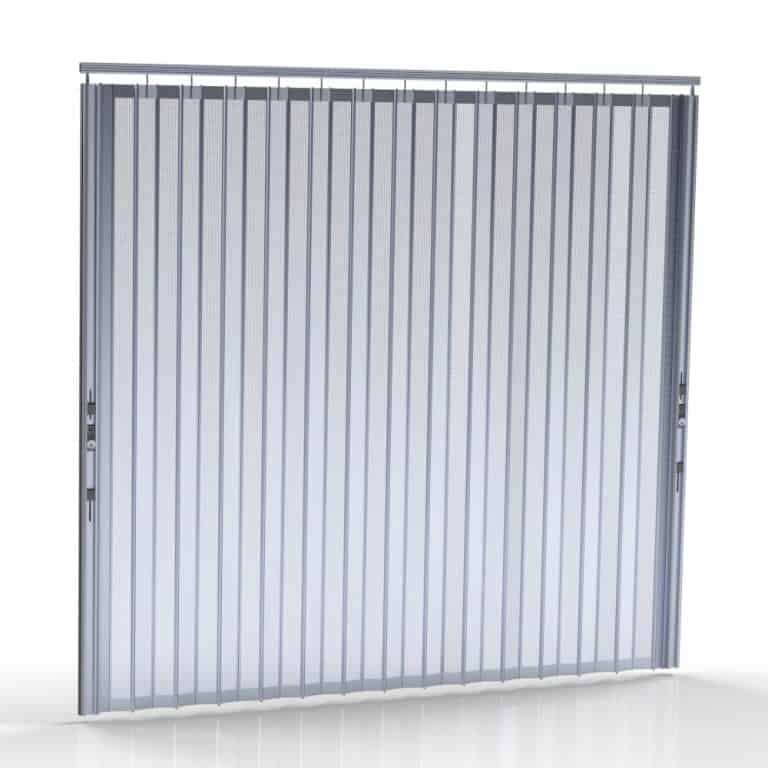

SL Paravent

  • Material: Perforated aluminum interlocked in 4” wide interlocking panels.
  • Weight/Load: 11.5 lbs per ft² (stacked) and 1.80 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

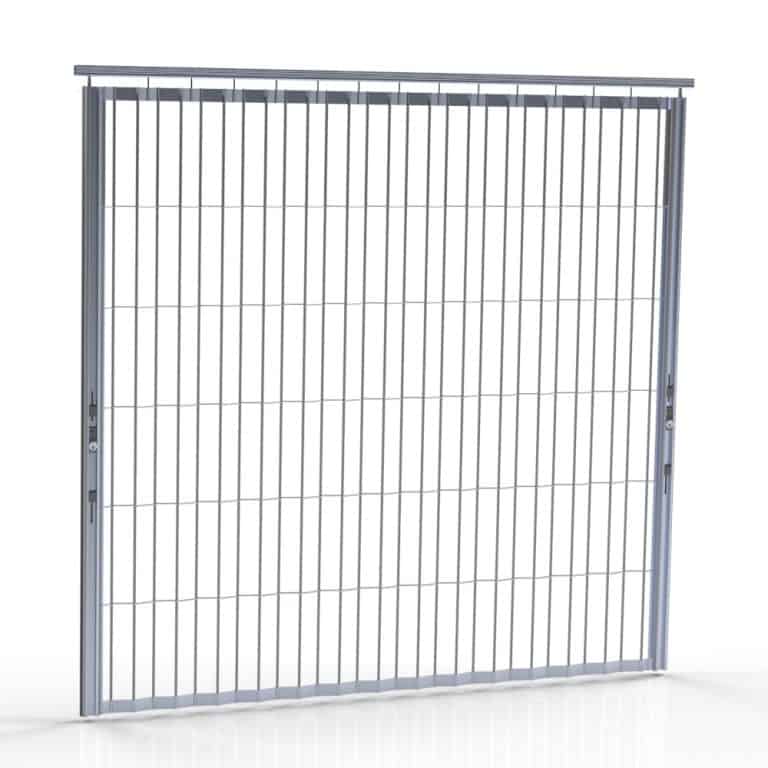

SL 154

  • Material: 4” wide aluminum rod and link .
  • Weight/Load: 5 lbs per ft² (stacked) and 1.00 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3” per post (estimated calculation)

EZ Series – With Pocket

The EZ 4 Inch security grille includes its own steel pocket frame and anodized aluminum pocket door, eliminating the need for your contractor to build one on site.

It arrives with the door already loaded in the pocket, saving installation time.

Even better, the pocket is 6-inches wide, allowing it to fit flush with commercial wall studs for a visually seamless integration.

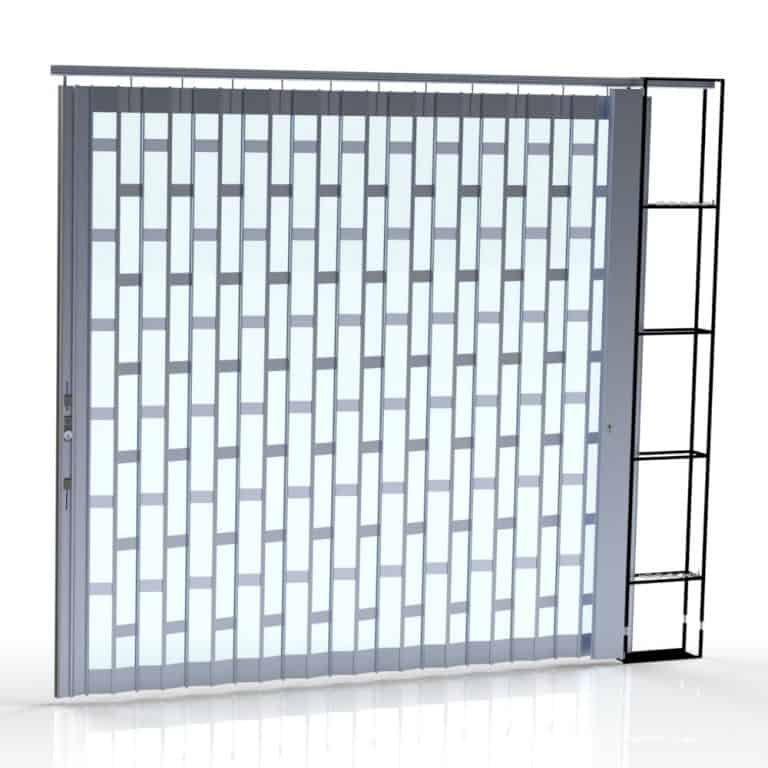

EZ 525 CS

  • Material: 4” wide panel with interlocked 12” polycarbonate panels and 2” solid aluminum panels in a brick design.
  • Weight/Load: 11.5 lbs per ft² (stacked) and 1.80 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

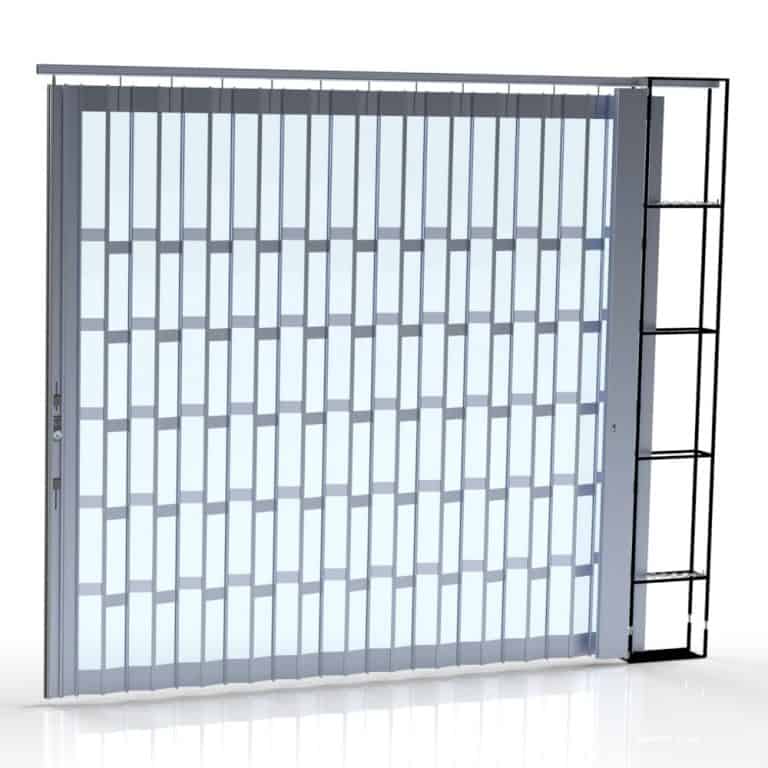

EZ 12 CS

  • Material: 4” wide panel with interlocked 12” polycarbonate panels and 2” solid aluminum panels in a brick design.
  • Weight/Load: 11.5 lbs per ft² (stacked) and 1.80 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

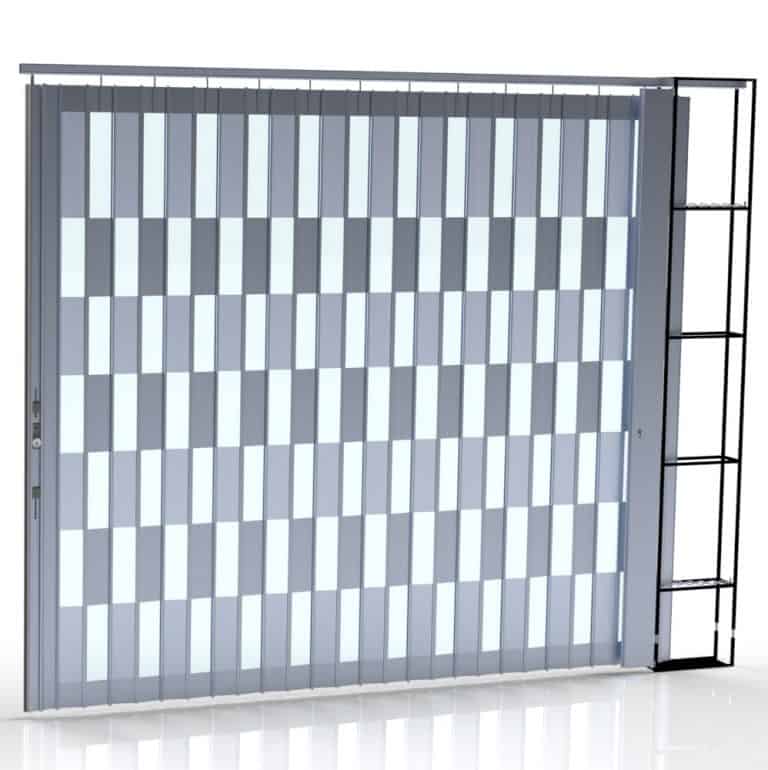

EZ AG CS

  • Material: 4” wide panel with interlocked alternating polycarbonate panels and solid aluminum panels in a checkerboard design. 6”, 9” 12”, 18” patterns available.
  • Weight/Load: 13.5 lbs per ft² (stacked) and 2.00 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

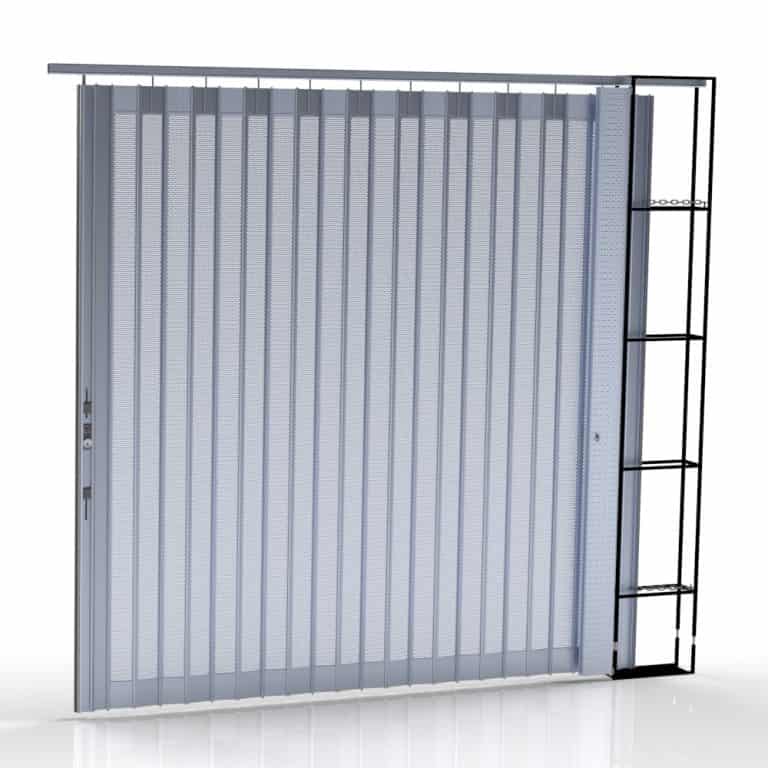

EZ Paravent

  • Material: 4” wide interlocked perforated aluminum panels.
  • Weight/Load: 11.5 lbs per ft² (stacked) and 1.80 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

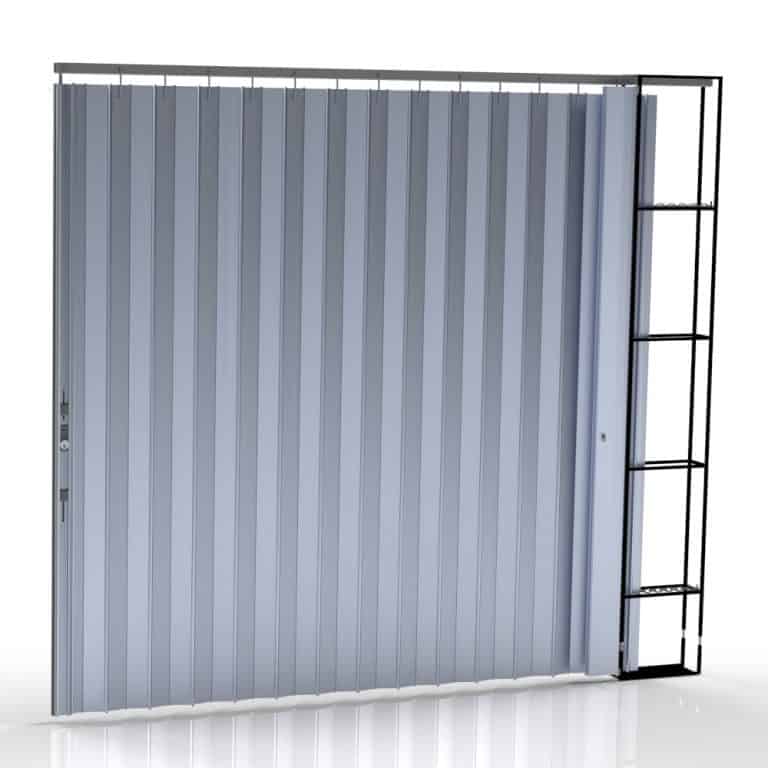

EZ Opaque

  • Material: 4” wide interlocked solid aluminum panels.
  • Weight/Load: 15 lbs per ft² (stacked) and 2.20 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

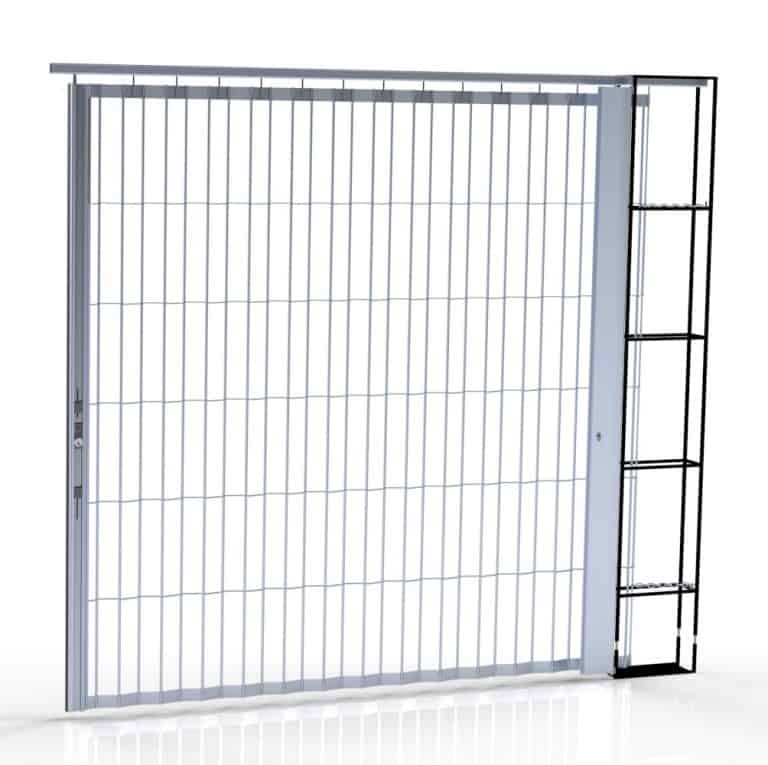

EZ Grille

  • Material: 4” wide aluminum rod and link  straight pattern.
  • Weight/Load: 5.0 lbs per ft² (stacked) and 1.0 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)

EZ Prestige

  • Material: Polycarbonate panels interlocked in  4” wide aluminum frame. Hinge: 1 piece continuous aluminum.
  • Weight/Load: 10 lbs per ft² (stacked) and 1.60 lbs per ft² (extended)
  • Stacking: 10% of curtain width plus 3″ per post (estimated calculation)
  • Get a Free Quote

    Please fill in this quick contact form and a professional from our team will reach out to give you a free no obligation quote for your next project.

  • Please describe your project and the types of products you are interested in (for example: Side Folding Doors).
  • This field is for validation purposes and should be left unchanged.

Let's Get Started

Our doors are perfect for airports, malls, pharmacies, schools, hospitals, offices, community centers and multi-use recreational facilities, or any kind of public space.

Your clients will find our closures easy to use whether opening or closing, and locks are easy to update.

You can also give us a call from Monday to Friday between 8AM – 5PM Eastern.

Features and Options

Dynamic Closures has a product for every security need. With feature-rich options included and custom options available, we can supply a system that suits each project’s unique demands. Features are unique to each product, so be sure to explore each one to find the best suited for your design.

Highly Functional and Well Designed Posts

Our posts are highly functional and well designed with many ways to secure the curtain with a wide variety of locking posts. All of our locking posts are completely reversible to accommodate left-hand and right-hand grips. All posts have flush-mounted hardware for sleek look and elimination of snag points. The unique shape makes these our strongest locking posts ever, while making it the easiest to service.

Security Door Post Types and Descriptions

Emergency Egress Doors

Easily comply with local fire safety codes including ADA rules for wheelchair users) with our emergency “door within a door” exits that are available on request. These fire exits are available in different widths to accommodate wheelchair users.

Emergency Egress Door Options

Pocket Door

The robust construction of the pocket door is designed to provide decades of smooth, trouble-free service. As well, the door is pre-assembled and ships in the pocket for the easiest installation of any side folding door. Doors have up to 8” wide pockets and save time and effort in installation. Left and right hand openings available.

Door Pockets Details

Custom Curves With Fast Delivery

Your security door can have almost any type of custom curve. We bend and heat treat these in-house for the fastest possible turnaround time. These are the highest quality custom curves in the industry with the fastest delivery time.

Track and Custom Curves Specifications

Patented Continuous Hinged Construction

Our patent pending revolutionary hinge design prevents hideous soot that is commonly found with piano hinges after a few months. How do we do it? Instead of the 2-part piano hinge, our hinge is a 1-piece continuous hinge that mates with the panels that form the curtain. This hinge stays cleaner during the lifetime of the door.

Color and Material Options

Depending on the model you choose, you can get materials like aluminum rod and link construction, polycarbonate panels, perforated steel, solid aluminum or tempered glass. We also stock finishes including clear anodized, black anodized and offer optional finishes such as bronze, light bronze, champagne and unlimited powder coat finishes colors.

Optional Maglock

Make keys a thing of the past and easily unlock your door using card readers and keypads. Wall channel posts and Lead posts are now available with Maglock, the electromagnetic lock capable of withstanding 850 lbs of force. Connects to a 12/24 VDC power supply from your existing alarm system. Unlock your door using a keypad or card reader.

Easy-Change Locking Cylinders

Easily change the 1” mortise cylinder locks provided to work with your internal key system. Ongoing lock updates are just as easy and are a great way to ensure old keys no longer work. Optionally available: SFIC housing and cores.

Locking System Options

Floor And Counter Sockets

Dust proof floor sockets prevent dirt accumulation with a spring-loaded cap that closes when the lock is not inserted.

Food safe sockets for securing grilles on counters meet health code requirements. Stainless steel construction resists bacterial growth and open bottom allows any food particles to drop out the bottom to a waste bin.

Frequently Asked Questions

Dynamic Closures has made curtains hundreds of feet (almost a hundred meters) wide with our side-folding models. The only exception is the EZ series, there is a limit of about 32 feet for EZ Closure into one pocket. Dimensions will vary based on how many posts are needed for that specific layout.

The EZ models can be 12 feet in height. Dynamic has made a side-folding grille as high as 28 feet. Most competitors do not make grilles or closures over 10 feet or 12 feet high.

Dynamic Closures also has height adjustable side-folding doors.

No, there’s no need. Proper manual operation moves the curtain through some of the most creative layouts easily, saving the costs of motors and electrical hook up.

No! In fact the set clearance from the bottom of the curtain to the finished floor is 1-1/4 inches (32mm); to a counter top 3/4 in.(19mm). Sometimes floors are quite uneven and adding the optional adjustable height hardware is money well spent. The standard clearances may not be enough, or too much. It is because of these unexpected field problems that Dynamic’s optional adjustable height hardware can resolve a problem and avoid a crisis.

Very little. The 1-5/8 inch (41mm) height of the track is often partially or completely ‘buried’ by sheetrock or surface mounted on the exposed header.

Curtains are various weights depending on which model you choose. It is important that the entire header-support handle the stacked weight. A comprehensive reference chart can be found on each products landing page.

Not as big as you would think, Dynamic has the smallest stacking sizes in the industry. Amazingly, Dynamic’s EZ Closure and SlimLine stacks extremely small also. You can easily calculate the size of the stack using this calculator.

Dynamic’s EZ Closure includes a steel frame pocket and pocket door. All other side-folding models do not include a pocket. The general contractor builds the pocket and provides the door.

The terms accordion and scissor are often used, but side folding is the most accurate. The terms rolling, coiling and scissor apply to other products.

Our Elite models come standard with adjustable height hardware, making it easy to move the curtain up 1”, or down 1”, in ½” increments.

We can supply a variety of standard curves (90°, 120°, 135°, and 150°) to accommodate a variety of site conditions. Dynamic can also bend special curves in-house to ensure your door’s function at maximum efficiency.
